PVC Foam Board 10m

PVC Foam Board 10m

Hollyseal® PVC foam board 10m is closed cell products, generally of low-density construction exhibiting firm support, low attenuation characteristics and good durability as well as weather resistant, flame retardant and are especially oil resistant.PVC foam board 10m is used for cushioning, vibration dampening, and shock absorption. These products are die-cuttable to customer specification.Thickness 0.5-25mm Density 90-450kg/m³

Description

Product description:

Hollyseal® PVC foam board 10m is closed cell products, generally of low-density construction exhibiting firm support, low attenuation characteristics and good durability as well as weather resistant, flame retardant and are especially oil resistant.PVC foam board 10m is used for cushioning, vibration dampening, and shock absorption. These products are die-cuttable to customer specification.

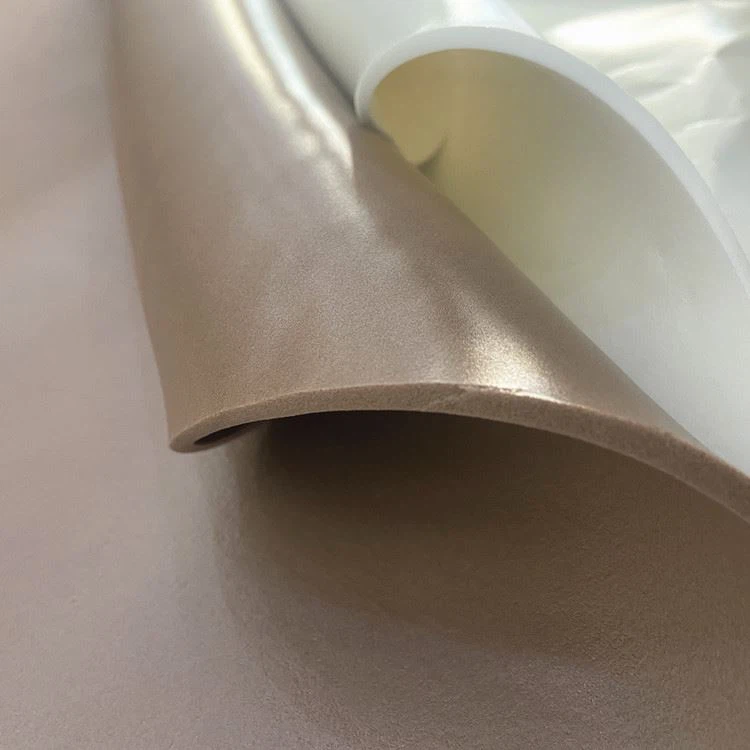

Product detail pictures:

42



Features:

1.Absorbs shocks, cushions, deadens sound and eliminates excess vibration

2.Excellent dimensional stability and cushion against heavy loads

3.Resistant to weather, UV rays and chemical

4.Seal out water,light and oxygen

4.Good combination of flexibility and conformability with strength & wear resistance



Technical Information:

Density  180±20 kg/m3
Shore 00 Hardness 25±5°
30% Compression set ≤6%
Tensile Strength ≥380 kPa
Elongation  ≥150%
Flammability

UL-94 V-0

UL-94 HF-1

FMVSS 302

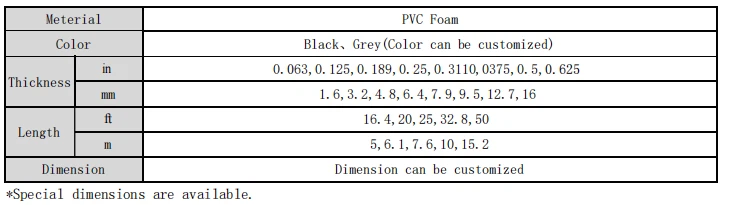

Specification

63b0e81f6052f663f581c50d49baebe

Application:

1.HVAC seals

2.Electrical appliances

3.Power battery sealing and buffering

4.Die-cut gasket application

5.Machinery enclosures

6.Door and window weatherstripping

7.Automotive application  (Automotive interior cabin,Automotive sheet metal,Automotive roof rails,Car speaker,Car air conditioning vent etc.)



27

Product packing and delivery:

2_副本
