Fire Resistant PVC Foam Glazing Tape video

Fire Resistant PVC Foam Glazing Tape

Hollyseal® Fire Resistant PVC Foam Glazing Tape combines a closed-cell polyvinyl chloride foam substrate with a pressuresensitive adhesive on both sides.Fire Resistant PVC Foam Glazing Tape features an aggressive, two-sided adhesive for fast and easy assembly of glazing. Our company is a professional manufacturer of PVC foam. We have a complete production chain. Products can be customized according to customer requirements.

Description

Product description:

Hollyseal® Fire Resistant PVC Foam Glazing Tape combines a closed-cell polyvinyl chloride foam substrate with a pressuresensitive adhesive on both sides.Fire Resistant PVC Foam Glazing Tape features an aggressive, two-sided adhesive for fast and easy assembly of glazing.

Hardness(Shore 00 5°~99°)Density(110kg/m³~500kg/ m³)Thickness (1mm~25mm)


Product structural:

● Release liner▕ Polypropylene liner

● Adhesive▕ Acrylic adhesive

● Foam▕ PVC,black

● PVC foam glazing tape is smooth and flat on both sides

2bb2925cbeebad5c21c827de17f1d77

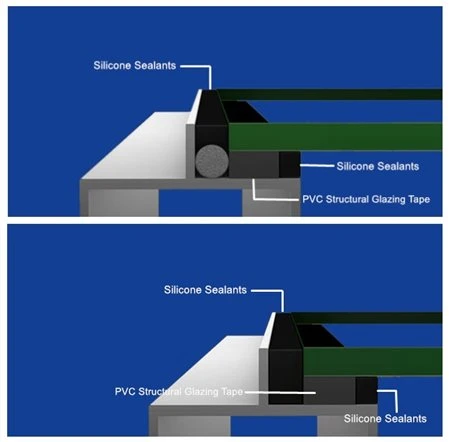

Application:

● Door and window seal

● Building and construction such as gaskets, weather stripping, appliances, HVAC

● Electronic appliance seal

● Furniture and glass

● For indoor use as weather stripping, cushion, insulator, seal, and gap-filler

df6227e16515b3f8feecd5dfdc42c87


Specification:

MaterialHigh density PVC Foam
ColorBlack
AdhesiveAcrylic
Adhesive surfaceDouble sided
Release filmBlue release film
Thicknessin0.063,0.125,0.189,0.25,0.311,0.375,0.5
mm1.6,3.18,4.8,6.35,7.9,9.53,12.7
Lengthft16.4,20,25,32.8,50
m5, 6.1, 7.6, 10, 15.2
DimensionDimension can be customized


Technical Information:

Density350±50 kg/m³
Shore 00 Hardness 70±10°
Tensile Strength  ≥900kPa
Elongation ≥70%
180°Peel Strength 0.82N/mm
30% Compression set≤5%
Flammability

UL-94 V-0

UL-94 HF-1

FMVSS 302

7a760676d704e1f0d92025576a19880


Hot Tags: fire resistant pvc foam glazing tape, China, manufacturers, suppliers, wholesale
