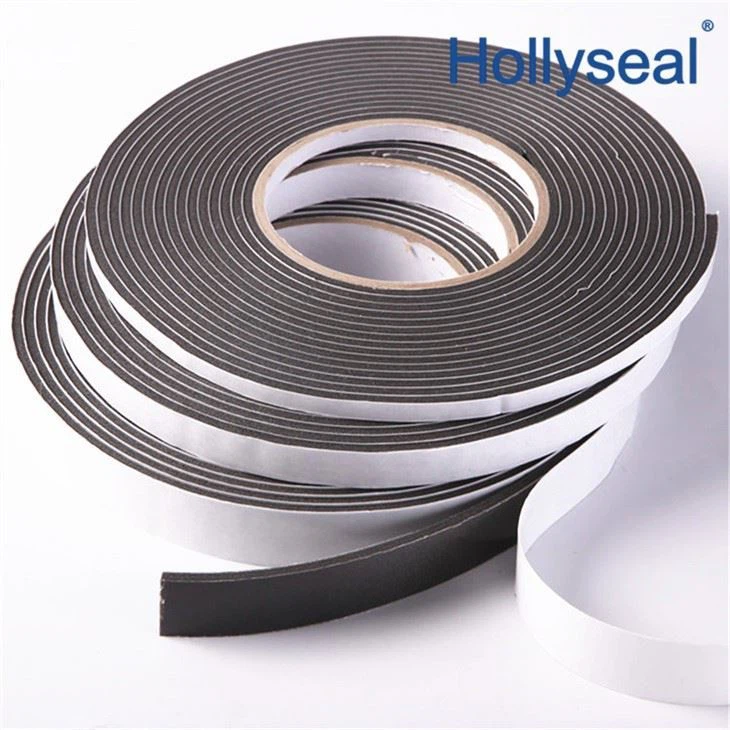

Black PVC Foam Insulation Tape

PVC foam tape is made by 180±20 kg/m3 density closed cell PVC foam with pressure-sensitive adhesive on one side designed to provide an economical solution to seal against light, air and moisture. It is ideal for applications such as appliance seals, wall panels,die-cut,gaskets, and window and door weatherstripping.

Send Inquiry Chat Now

Description

Product description:

Specification：

Material		PVC Foam
Color		Black,Grey,White,Brown,Special colors can be customized
Adhesive		Acrylic
Adhesive surface		Double sided or single sided, can be customized
Thickness	in	0.063, 0.079, 0.126, 0.157, 0.189, 0.197, 0.236, 0.248, 0.315, 0.374
	mm	1.6, 2, 3.2, 4, 4.8, 5, 6, 6.3, 8, 9.5
Length	ft	16.4, 20, 25, 32.8, 50
	m	5, 6.1, 7.6, 10, 15.2
Width dimension		Conventional 1020mm /1350mm,Special can be customized

Technical Information:

Density	180±20 kg/m³
Shore 00 Hardness	25±5°
30% Compression set	≤6%
Tensile Strength	≥380 kPa
90°Peel Strength	≥2N/10mm
Elongation	≥150%
Flammability	UL-94 V0 UL-94 HF-1 FMVSS 302

Features:

1.Good compression and adhesive

2.Seal out water,light and dust

3.Low thermal conductivity improves the energy efficiency of your structure

4.Flexible at low temperatures

5.Paper release liner on the non-adhesive face,reducing dimensional change during application

6.Thicknesses from 1mm up to 25 mm

Application:

Used extensively in the automotive, HVAC, and construction industries to provide air & weather tight seals; for gasketing, cushioning, vibration control in speakers, vehicles, electronic components, door frames, etc.
