Double Coated PVC Foam Glazing Tape
The hollyseal® PVC foam double sided tape is easy to cut and joint for a good style in air handing and acoustic engineering building and construction, automotive electrical and electronic, furniture and glass, printing, packaging. Advertisement and many other industries for metal. plastic, paper, wood or silicon surfaces Customer's requests are available
Description
Product description：
The Hollyseal® Double Coated PVC Foam Glazing Tape is a semi-rigid foam tape with an aggressive pressure-sensitive adhesive. This high density tape has a specially formulated cellular substrate, and is used as a spacer for joint dimension control in structural silicone glazing systems. It is the most widely used spacer tape for structural silicone systems.
Hardness（Shore 00 5°~99°）Density（110kg/m³~500kg/ m³）Thickness (1mm~25mm)

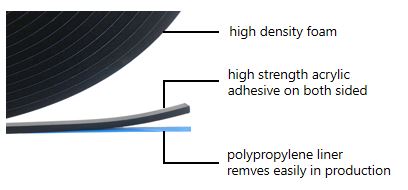

Product structural：
● Release liner▕ Polypropylene liner
● Adhesive▕ Acrylic adhesive
● Foam▕ PVC,black
● PVC foam glazing tape is smooth and flat on both sides
Technical Information:
| Density | 350±50 kg/m³ |
| Shore 00 Hardness | 70±10° |
| 30% Compression set | ≤5% |
| Tensile Strength | ≥900kPa |
| 180°Peel Strength | 0.82N/mm |
| Elongation | ≥90% |
| Flamability | UL-94 V0 UL-94 HF-1 FMVSS 302 |
Specification：
| Material | High density pvc foam | |
| Color | Black | |
| Adhesive | Acrylic | |
| Adhesive surface | Double sided | |
| Release film | Blue release film | |
| Thickness | in | 0.063, 0.125, 0.189, 0.25, 0.311, 0.375, 0.5 |
| mm | 1.6, 3.18, 4.8, 6.35, 7.9, 9.53, 12.7 | |
| Length | ft | 16.4, 20, 25, 32.8, 50 |
| m | 5, 6.1, 7.6, 10, 15.2 | |
| Dimension | Customized | |
Application:
Double Coated PVC Foam Glazing Tape is used to attach glass panels to metal frames in curtain wall systems, commercial windows and doors, skylight and canopy systems replacing commonly used mechanical fasteners, gaskets and structural silicone sealants.
Package of glazing tape：
Hot Tags: double coated pvc foam glazing tape, China, manufacturers, suppliers, wholesale
