PVC Glazing Foam Tape
Hollyseal® PVC Glazing Foam Tape is specifically designed to be a primary or secondary seal in a variety of glazing systems. It is self-shimming, so you don't need shims or spacers. The PVC Glazing Foam Tape is particularly resistant to weathering and water-absorption, while providing a superior long-lived seal.
Description
Product description:
Hollyseal® PVC Glazing Foam Tape is specifically designed to be a primary or secondary seal in a variety of glazing systems. It is self-shimming, so you don't need shims or spacers. The PVC Glazing Foam Tape is particularly resistant to weathering and water-absorption, while providing a superior long-lived seal.
Hardness（Shore 00 5°~99°）Density（110kg/m³~500kg/ m³）Thickness (1mm~25mm)
Product structural：
● Release liner▕ Polypropylene liner
● Adhesive▕ Acrylic adhesive
● Foam▕ PVC,black
● PVC foam glazing tape is smooth and flat on both sides
Specification：
| Material | High density pvc foam | |
| Color | Black | |
| Adhesive | Acrylic | |
| Adhesive surface | Double sided | |
| Release film | Blue release film | |
| Thickness | in | 0.063, 0.125, 0.189, 0.25, 0.311, 0.375, 0.5 |
| mm | 1.6, 3.18, 4.8, 6.35, 7.9, 9.53, 12.7 | |
| Length | ft | 16.4, 20, 25, 32.8, 50 |
| m | 5, 6.1, 7.6, 10, 15.2 | |
| Dimension | Customized | |
Technical Information:
| Density | 350±50 kg/m³ |
| Shore 00 Hardness | 70±10° |
| 30% Compression set | ≤5% |
| Tensile Strength | ≥900kPa |
| 180°Peel Strength | 0.82N/mm |
| Elongation | ≥90% |
| Flamability | UL-94 V0 UL-94 HF-1 FMVSS 302 |
Application:

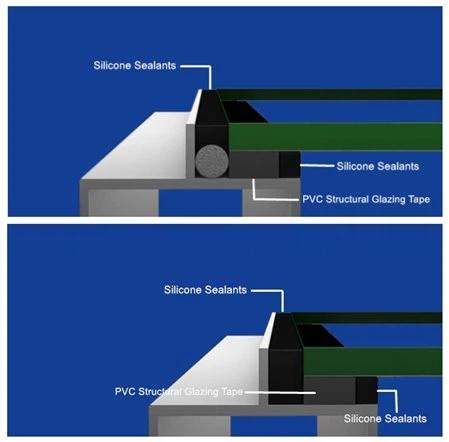

● Spacer for two- and four- sided structural glazing systems
● Residential and Commercial window glazing
● Heating and ventilation duct systems
● Automotive and transportation
Package of glazing tape：
