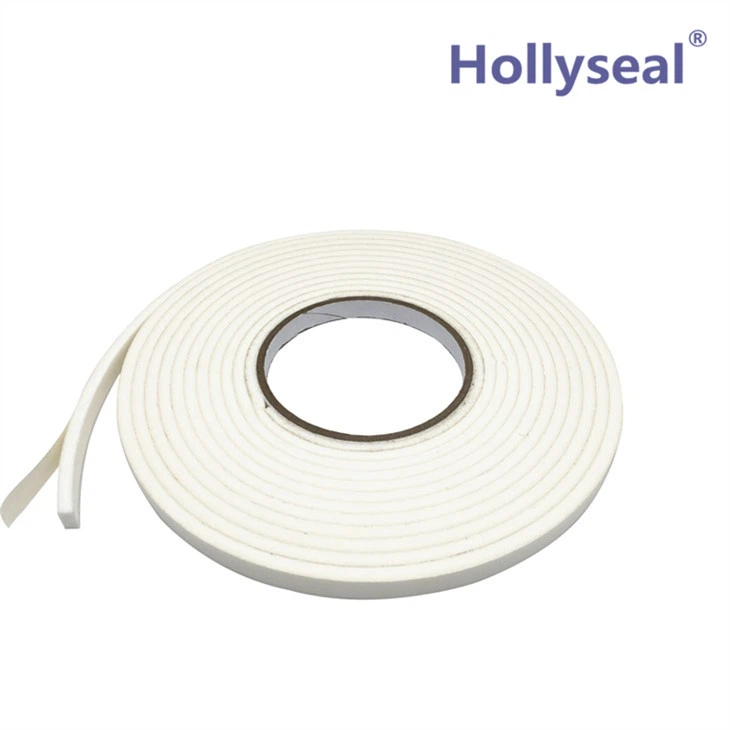

Soft PVC Adhesive Foam Tape
Soft PVC Adhesive Foam Tape is a soft, highly conformable, low-density closed cell foam with an acrylic adhesive on one side.The soft PVC Adhesive Foam Tape will form a watertight seal at less than 30% compression, which makes it ideal for sealing applications with narrow flange facings or low compressive loads.Hardness(Shore 00 5°~99°)Density(80kg/m³~500kg/ m³)Thickness (1mm~25mm)
Description
Product description:
Soft PVC Adhesive Foam Tape is a soft, highly conformable, low-density closed cell foam with an acrylic adhesive on one side.The soft PVC Adhesive Foam Tape will form a watertight seal at less than 30% compression, which makes it ideal for sealing applications with narrow flange facings or low compressive loads.
Hardness(Shore 00 5°~99°)Density(110kg/m³~500kg/ m³)Thickness (1mm~25mm)

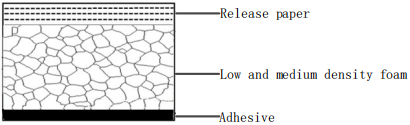

Product structural:

Specification:
| Material | PVC foam | |
| Color | Black, grey, white, brown, special colors can be customized | |
| Adhesive | Acrylic | |
| Adhesive surface | Double sided or single sided,can be customized | |
| Thickness | in | 0.063, 0.079, 0.126, 0.157, 0.189, 0.197, 0.236, 0.248, 0.315, 0.374 |
| mm | 1.6, 2, 3.2, 4, 4.8, 5, 6, 6.3, 8, 9.5 | |
| Length | ft | 16.4, 20, 25, 32.8, 50 |
| m | 5, 6.1, 7.6, 10, 15.2 | |
| Width dimension | Conventional 1020mm/1350mm,special can be customized | |
Technical Information:
| Density | 180±20 kg/m³ |
| Tensile Strength | ≥380 kPa |
| Elongation At Break | ≥150% |
| 30% Compression set | ≤6% |
| Shore 00 Hardness | 25±5° |
| Flammability | UL-94 V-0 UL-94 HF-1 FMVSS 30 |

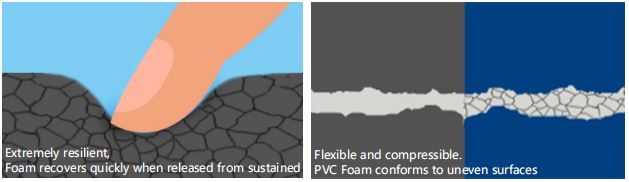

Features:
● White PVC foam tape has good compression and strong adhesive
● Closed-cell foam which seals out air, dust and moisture
● Very good ultraviolet {UV} light resistance
● Self-extinguishing
● Resistance to abrasion, corrosion
● Sound dampening and shock absorption
● Dimensionally stable under compression
● Thicknesses from 1mm up to 25mm

Application:
●Used extensively in the automotive, HVAC, and construction industries to provide air & weather tight seals
●Gasketing, cushioning, vibration control in speakers, vehicles, electronic components, door frames, etc
