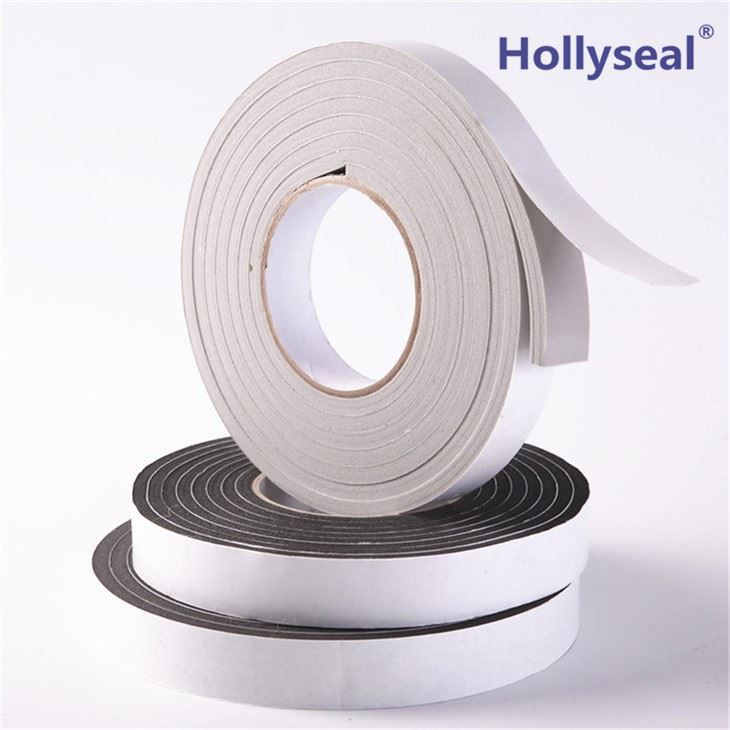

Insulation PVC Foam Weather Stripping
The Hollyseal® Insulation PVC Foam Weather Stripping is a closed cell medium density foam tape with one sided acrylic. It is designed for use in gasket and sealing, providing excellent resistance to water and other fluids,along with providing a long life seal against light, dust and air penetration. It cushions and absorbs shock, and can be used in sound, electrical and thermal applications.Owing to its closed-cell foamed structure, Insulation PVC Foam Weather Stripping is regarded as a well performance sealing products in building field. Single side and double side are both available.
Description
Product description:
The Hollyseal® Insulation PVC Foam Weather Stripping is a closed cell medium density foam tape with one sided acrylic. It is designed for use in gasket and sealing, providing excellent resistance to water and other fluids,along with providing a long life seal against light, dust and air penetration. It cushions and absorbs shock, and can be used in sound, electrical and thermal applications.Owing to its closed-cell foamed structure, Insulation PVC Foam Weather Stripping is regarded as a well performance sealing products in building field. Single side and double side are both available.
Hardness（Shore 00 5°~99°）Density（110kg/m³~500kg/ m³）Thickness (1mm~25mm)
Product structural:
Technical information:
| Density | 250±30 kg/m³ |
| Shore 00 Hardness | 50±7° |
| Tensile Strength | ≥450 kPa |
| Elongation | ≥110% |
| 90°Peel Strength | ≥2N/10mm |
| 30% Compression set | ≤5% |
| Flammability | UL-94 V-0 UL-94 HF-1 FMVSS 302 |
Specification:
| Material | PVC foam | |
| Color | Black、Grey、White、Brown、Special colors can be customized | |
| Adhesive | Acrylic | |
| Adhesive surface | Double sided or single sided,can be customized | |
| Thickness | in | 0.063, 0.079, 0.126, 0.157, 0.189, 0.197, 0.236, 0.248, 0.315, 0.374 |
| mm | 1.6, 20, 3.2, 4, 4.8, 5, 6, 6.3, 8, 9.5 | |
| Length | ft | 16.4, 20, 25, 32.8, 50 |
| m | 5, 6.1, 7.6, 10, 15.2 | |
| Width dimension | Conventional 1020mm/1350mm,special can be customized | |
Features:
1.Close-cell foam-excellent dust and moisture seal
2.Single-sided foam tape is resistant to weather and UV
3.Insulation, seal, ,sound proof, heat resistance
4.Good compression recovery
5.Conform to curves and different shapes
6.Minimum 30% compression required to effect a water seal
7.Dimensionally stable under compression
8.Thicknesses from 0.8mm up to 16mm
Application:
Designed to use in applications on uneven surfaces for producing positive and tight seals. The flexibility & conformability of this tape helps seal radius curves. It is ideal for automotive, HVAC, and construction industries to form air and weather tight seals. Other applications are gasketing, cushioning, doors, door frames, refrigerator doors, vibration control in speakers, windows, casements, door jamb, deck on a boat, electronic components, curio cabinet.
Package
